Description

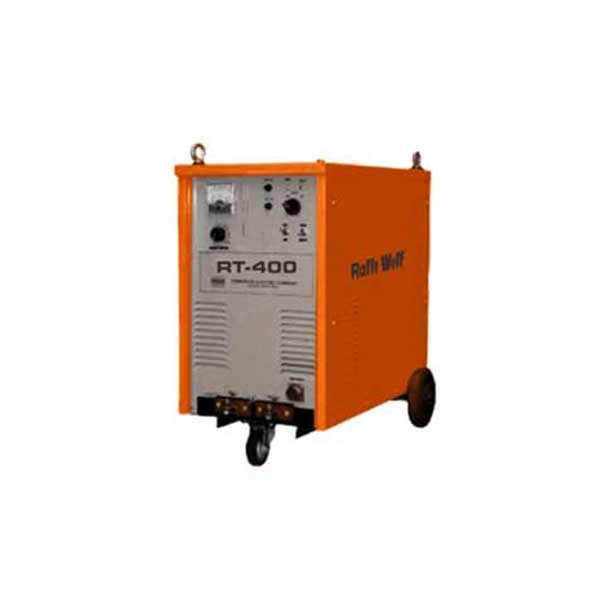

RT Series is a combination of high quality performamce & site worthy construction. It is a Thyristorised D.C. manual welder, also an excellent machine for D.C. TIG Welding with suitable accessories. RT-600 is suitable for GOUGING application too.
Ideal constant current power source for manual MMA/TIG Welding.
Stepless current control with Remote Control facility(optional).
Excellent arc striking up to 100 meters cable length (Electrode cable + Ground cable). Cable length drop compensated.
Stable arc and quality welding, high metal recovery.
Longer coil life.
Ideal for rough site conditions
True constant current output
Overload indication lamp with auto shut down
Remote Control socket
Confirms to IS : 4559
Can be operated from captive Alternator sets
Steady welding output current even with +/-10% variation in supply voltage
Specifications
| Input Supply Voltage | 415 V ± 10% 3Ph 50 Hz |
|---|---|
| KVA (Max) | 21.5 |
| Primary Current | 30 A |
| Open Circuit Voltage | 95 V |
| Rated Current | 400 A |
| Max. Const. Hand Welding Current (60%) | 400 A |
| Max. Automatic Welding Current (100%) | 310 A |
| Current Range (A) | 10-400 |
| Insulation Class | H |
| Protection | IP 23 |
| Type of Cooling | Forced Air |
| Weight (approx) | 112 kg |
| Length (mm) | 700 |
| Width (mm) | 400 |
| Height (mm) | 750 |
